Shell And Tube Condenser

The operating principle of a Shell And Tube Condenser is based on the second law of thermodynamics: heat always flows from a hot object to a cold object. Therefore, when vapor enters a condenser, it exchanges heat with the cooling medium, thereby transferring its heat to the liquid. This heat transfer can be achieved by direct conduction and radiation. To ensure efficient condensation, the Shell And Tube Condenser and piping need to be designed large enough to allow for adequate mixing of the liquid and gas. In addition, Shell And Tube Condenser need to be well sealed to prevent leakage.

In addition to industrial applications, Shell And Tube Condensers are widely used in air conditioning systems, refrigeration systems and solar panels. In these applications, the Shell And Tube Condenser's role is to transfer heat from the gas to the liquid for cooling purposes.

China Shell And Tube Condenser factory. According to the condenser using cooling medium and cooling method, there are three kinds of water-cooled, air-cooled and evaporative cooling (water-air cooling).

Let's start with water-cooled condensers. This type of condenser uses water as a cooling medium to take away the heat released when the refrigerant condenses. The cooling water can be used once or recycled. With circulating water, must be equipped with cooling tower or cold water pool, to ensure that the water is constantly cooled. According to its structure, there are mainly shell and tube type and casing type and plate heat exchanger which is mostly used nowadays.

Shell And Tube Condenser belongs to a kind of water-cooled condenser. Different refrigerants are used in refrigeration units, and their structural characteristics are also different. Generally, vertical Shell And Tube Condenser is suitable for large ammonia refrigeration units, while horizontal Shell And Tube Condenser is commonly used in large and medium-sized ammonia or Freon refrigeration units. The fixing method of the tube plate and the heat transfer tube generally adopts the expansion method, so as to facilitate the repair and replacement of the heat transfer tube.

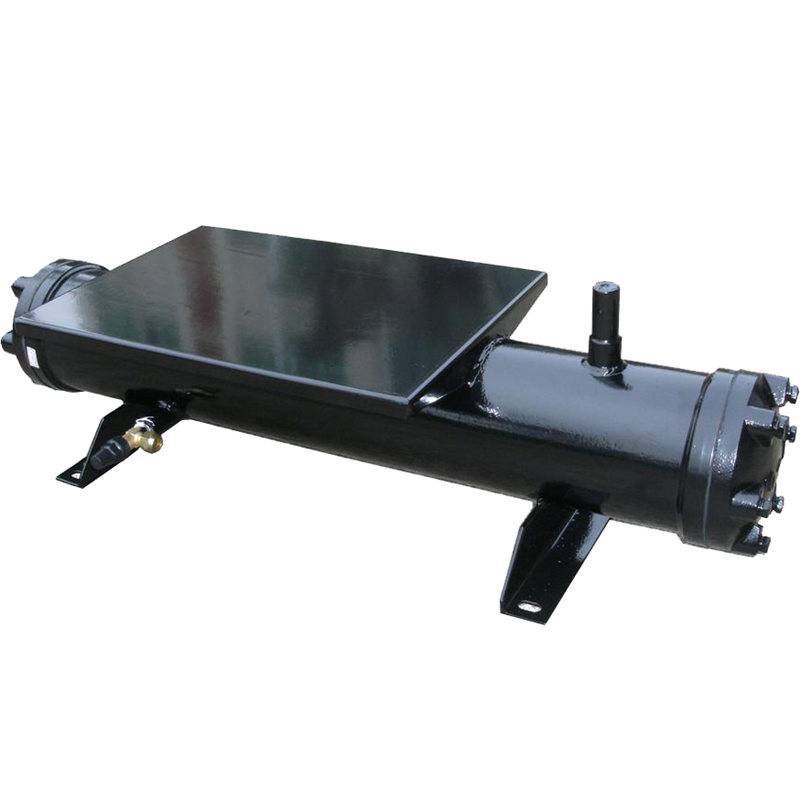

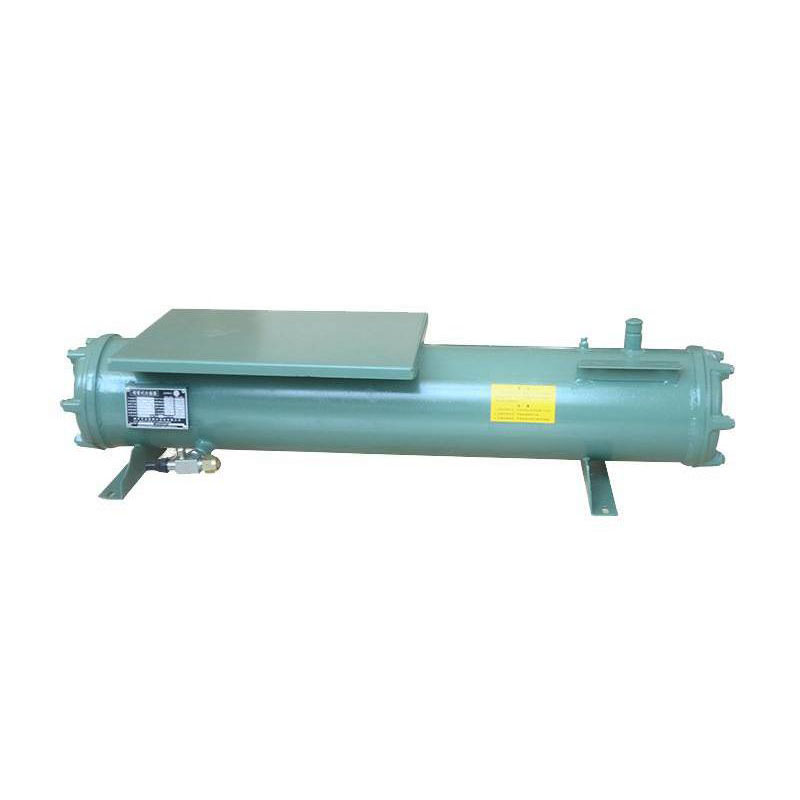

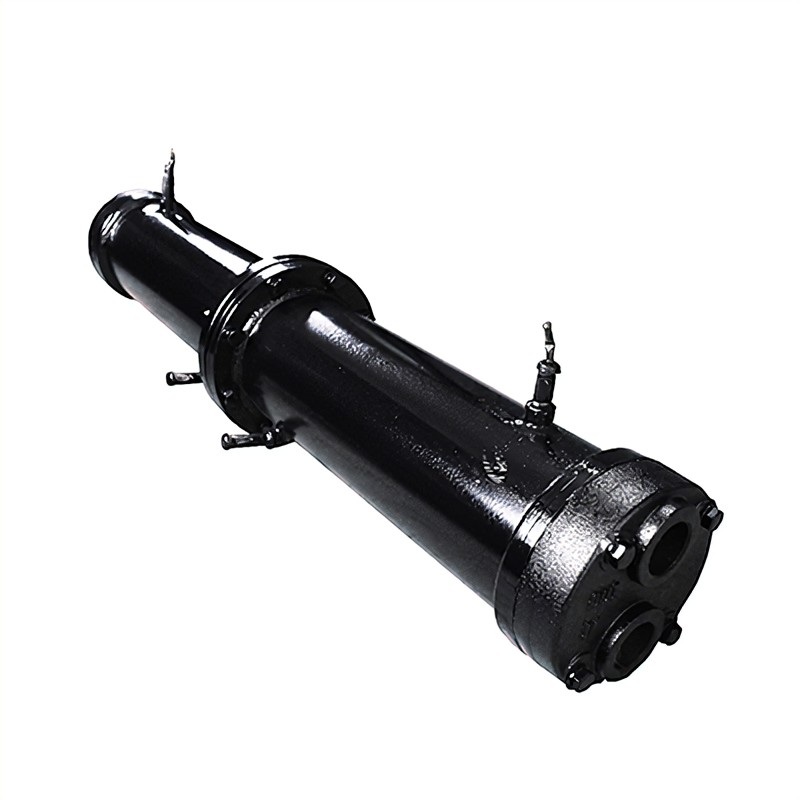

Horizontal Shell And Tube Condenser features: High heat transfer coefficient, low cooling water consumption, convenient operation and management; however, the quality of cooling water is highly required. At present, large and medium-sized refrigeration devices are generally used in this device.

Vertical Shell And Tube Condenser features: 1-Discharge tube; 2-Pressure gauge connector; 3-Inlet tube; 4-Water distribution tank; 5-Safety valve connector; 6-Pressure equalization tube; 7-Drain tube; 8-Oil Drain tube;
