A crankcase pressure regulator (CPR) is a vital protective device used in refrigeration and air conditioning systems to prevent compressor damage caused by excessive suction pressure during startup or sudden load changes. This article explores its working principles, industrial applications, installation considerations, common issues, and maintenance strategies. By understanding how a CPR stabilizes system pressure and protects compressors from overload, engineers and technicians can significantly improve system reliability, efficiency, and service life.

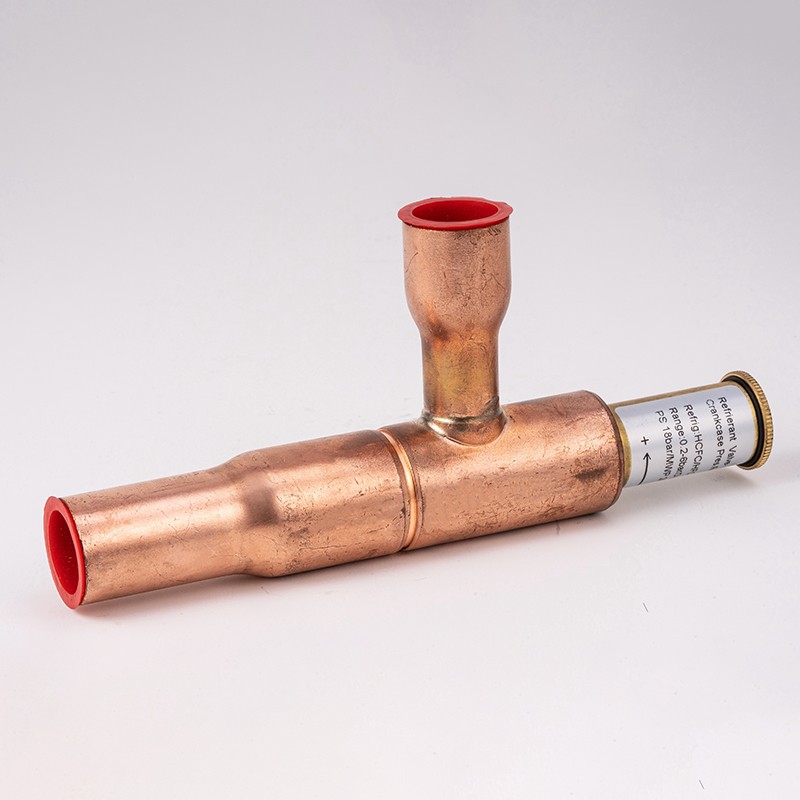

A Crankcase Pressure Regulator is a mechanical valve installed in refrigeration systems to control the pressure entering the compressor crankcase. Its primary function is to limit suction pressure during startup or after defrost cycles, preventing compressor overload and potential mechanical failure.
In refrigeration systems, especially those using large-capacity compressors or low-temperature evaporators, sudden pressure fluctuations can create severe stress on compressor components. The CPR acts as a protective buffer, ensuring smooth and controlled pressure transitions.
Modern refrigeration systems operate under demanding conditions. Without proper pressure regulation, compressors may experience:
The crankcase pressure regulator plays a critical role in preventing these issues by ensuring that pressure levels remain within safe operational limits.
In large commercial refrigeration setups, such as cold storage warehouses or industrial cooling systems, CPRs are not optional—they are essential for operational safety and efficiency.
The CPR operates based on a spring-loaded diaphragm mechanism. It automatically adjusts the opening based on downstream pressure (crankcase pressure).
When the suction pressure exceeds a preset limit, the valve partially closes, restricting refrigerant flow into the compressor. Once pressure stabilizes, the valve gradually reopens.
Key operational stages:
This dynamic adjustment ensures that the compressor operates within safe mechanical and thermal limits.
Different refrigeration systems require different CPR configurations. The most common types include:
| Type | Description | Best Use Case |
|---|---|---|
| Standard Mechanical CPR | Spring-loaded diaphragm control valve | General refrigeration systems |
| Adjustable CPR | Allows manual setting of pressure limits | Flexible industrial applications |
| High-Precision CPR | Designed for sensitive temperature control systems | Medical and laboratory refrigeration |
| Heavy-Duty CPR | Built for large industrial compressors | Cold storage and logistics centers |
Crankcase pressure regulators are widely used across multiple industries due to their reliability and protective functions.
In each of these applications, maintaining stable compressor pressure is essential for product quality and energy efficiency.
Despite their durability, CPR systems may encounter operational challenges:
These issues often result in inefficient cooling, increased energy consumption, or even compressor failure if not addressed promptly.
Choosing the correct crankcase pressure regulator depends on system requirements and operating conditions.
Key selection factors include:
A properly selected CPR ensures long-term system stability and reduces maintenance costs significantly.
Regular maintenance of CPR systems is essential for ensuring optimal performance and preventing system failures.
Maintenance checklist:
Troubleshooting tips:
| Device | Main Function | Difference from CPR |
|---|---|---|
| Expansion Valve | Controls refrigerant flow into evaporator | CPR regulates compressor suction pressure, not evaporator flow |
| Pressure Relief Valve | Prevents system overpressure | CPR manages operational suction pressure, not emergency release |
| Suction Pressure Regulator | Maintains evaporator pressure | Similar function but less focused on compressor protection |
Q1: What is the main purpose of a crankcase pressure regulator?
It protects the compressor by limiting suction pressure during startup and operation.
Q2: Where is CPR installed in a system?
It is typically installed in the suction line before the compressor.
Q3: Can a system operate without a CPR?
Yes, but it significantly increases the risk of compressor damage in demanding applications.
Q4: How often should CPR be checked?
At least every 3–6 months depending on system load and environment.
Q5: What causes CPR failure?
Common causes include contamination, wear of internal components, and incorrect pressure settings.
The crankcase pressure regulator is an essential safeguard in modern refrigeration systems. By controlling suction pressure and protecting compressors from overload, it ensures long-term system stability, energy efficiency, and reduced maintenance costs.
Whether used in cold storage, food processing, or industrial HVAC systems, the CPR plays a central role in maintaining reliable performance under fluctuating conditions.
Proper selection, installation, and maintenance are key to maximizing its benefits and ensuring uninterrupted operation in demanding environments.
