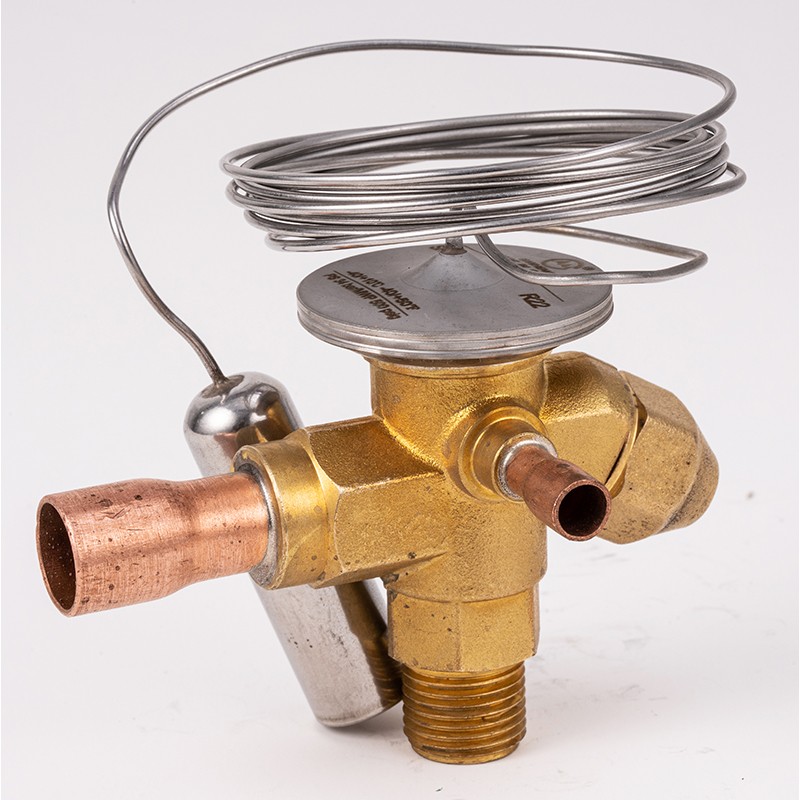

A thermal expansion valve for freezer is one of the most important components in modern refrigeration systems. It controls the amount of refrigerant entering the evaporator, maintains proper superheat, improves cooling efficiency, and protects the compressor from damage caused by liquid refrigerant return. This article explains the working principle, advantages, applications, maintenance requirements, and selection considerations of freezer thermal expansion valves to help refrigeration professionals and equipment buyers make better decisions.
Table of Contents
- 1. Why Is a Thermal Expansion Valve For Freezer Important?
- 2. How Does a Thermal Expansion Valve For Freezer Work?
- 3. Main Structure and Components of a Freezer Expansion Valve
- 4. Key Benefits of Using a High-Quality Thermal Expansion Valve
- 5. How to Choose the Right Thermal Expansion Valve For Freezer?
- 6. Common Problems and Solutions of Freezer Expansion Valves
- 7. Applications of Thermal Expansion Valves in Refrigeration Systems
- 8. Maintenance Tips for Longer Valve Service Life
- 9. Frequently Asked Questions
Why Is a Thermal Expansion Valve For Freezer Important?
Freezer systems require precise temperature control to preserve frozen food, medical supplies, laboratory materials, and other temperature-sensitive products. A thermal expansion valve for freezer plays a critical role by regulating refrigerant flow according to the cooling demand of the evaporator.
Without accurate refrigerant control, a refrigeration system may experience problems such as insufficient cooling, excessive energy consumption, unstable temperatures, or compressor failure. The expansion valve works as a smart regulating device that balances refrigerant supply and heat absorption efficiency.
Compared with simple throttling devices, a high-quality thermal expansion valve provides better adjustment capability. It can automatically respond to load changes, allowing freezers to maintain stable operation under different working conditions.
How Does a Thermal Expansion Valve For Freezer Work?
The working principle of a thermal expansion valve is based on controlling refrigerant pressure and temperature changes. The valve is installed between the condenser and evaporator, where it reduces high-pressure liquid refrigerant into a low-pressure mixture before entering the evaporator.
During operation, the sensing bulb attached to the evaporator outlet detects temperature changes. When the evaporator requires more refrigerant, the valve opens wider. When less cooling capacity is needed, the valve reduces refrigerant flow.
| Working Stage | Function | Effect |
|---|---|---|
| High-pressure refrigerant enters valve | The valve controls refrigerant passage | Prepares refrigerant for expansion |
| Pressure reduction | Liquid refrigerant changes into low-pressure mixture | Creates cooling effect |
| Evaporator operation | Refrigerant absorbs heat from freezer space | Maintains low temperature |
| Superheat adjustment | Valve adjusts refrigerant amount | Protects compressor |
This automatic adjustment capability makes thermal expansion valves especially suitable for freezers where temperature stability is essential.
Main Structure and Components of a Freezer Expansion Valve
Understanding the internal structure of a thermal expansion valve helps users evaluate product quality and performance. A reliable valve usually consists of several precision components working together.
- Valve body: Provides mechanical support and refrigerant flow channels.
- Diaphragm: Responds to pressure changes and controls valve movement.
- Sensing bulb: Detects evaporator outlet temperature.
- Spring mechanism: Helps regulate opening force.
- Needle and seat: Precisely control refrigerant flow.
The manufacturing accuracy of these components directly affects valve sensitivity, leakage prevention, and long-term reliability. Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. focuses on producing refrigeration automatic control components with stable performance and precise manufacturing technology.
Key Benefits of Using a High-Quality Thermal Expansion Valve
1. Improved Cooling Efficiency
A properly selected expansion valve ensures that the evaporator receives the correct refrigerant amount. This improves heat exchange efficiency and allows freezers to reach target temperatures faster.
2. Reduced Energy Consumption
When refrigerant flow is accurately controlled, the compressor does not need to operate excessively. This reduces electricity usage and lowers operating costs.
3. Better Temperature Stability
Freezer applications often require strict temperature control. A thermal expansion valve helps maintain consistent cooling performance even when environmental conditions change.
4. Compressor Protection
Too much refrigerant entering the compressor may cause liquid return damage. The expansion valve maintains proper superheat levels and improves compressor safety.
| Benefit | Impact on Refrigeration System |
|---|---|
| Precise refrigerant control | Improves overall cooling performance |
| Stable superheat control | Protects compressor operation |
| Automatic adjustment | Handles changing cooling loads |
| High reliability | Extends equipment lifespan |
How to Choose the Right Thermal Expansion Valve For Freezer?
Selecting the correct expansion valve requires consideration of several technical factors. Using an unsuitable valve may lead to poor refrigeration performance or system instability.
- Refrigerant type: Ensure compatibility with the refrigerant used in the freezer system.
- Cooling capacity: Select a valve matching the evaporator capacity.
- Operating temperature range: Different freezer applications require different temperature settings.
- Connection size: Confirm that inlet and outlet dimensions match the refrigeration system.
- Material quality: Choose corrosion-resistant and durable materials.
Professional manufacturers provide technical support to help customers select suitable models according to application requirements.
Common Problems and Solutions of Freezer Expansion Valves
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer temperature is too high | Insufficient refrigerant flow or valve blockage | Check valve condition and refrigerant system |
| Compressor liquid return | Valve opening too large | Adjust or replace expansion valve |
| Unstable cooling | Incorrect valve selection | Select suitable valve specification |
| High energy consumption | Poor refrigerant regulation | Inspect valve operation efficiency |
Applications of Thermal Expansion Valves in Refrigeration Systems
Thermal expansion valves are widely used in various refrigeration equipment where accurate cooling control is required.
- Commercial display freezers
- Industrial freezing equipment
- Cold storage systems
- Medical refrigeration equipment
- Food processing refrigeration systems
- Supermarket freezer cabinets
Their ability to maintain stable refrigerant flow makes them essential for applications requiring reliability and energy efficiency.
Maintenance Tips for Longer Valve Service Life
- Regularly inspect refrigerant system pressure and temperature.
- Keep the refrigeration system clean to prevent contamination.
- Check sensing bulb installation position.
- Monitor unusual temperature fluctuations.
- Replace damaged components promptly.
Routine inspection can prevent unexpected failures and maintain stable freezer performance over many years.
Frequently Asked Questions
What is the function of a thermal expansion valve in a freezer?
A thermal expansion valve controls refrigerant flow into the evaporator, maintains proper superheat, improves cooling efficiency, and protects the compressor from damage.
Why does a freezer need an expansion valve?
A freezer requires precise refrigerant regulation because temperature stability directly affects product quality and energy consumption.
How often should a freezer expansion valve be replaced?
Replacement depends on operating conditions, system maintenance, and component quality. Regular inspection helps determine when replacement is necessary.
What causes a thermal expansion valve to fail?
Common causes include contamination, incorrect installation, refrigerant problems, mechanical wear, and improper valve selection.
Conclusion
A thermal expansion valve for freezer is a crucial component that determines refrigeration efficiency, temperature stability, and system reliability. By accurately controlling refrigerant flow, it helps freezers achieve better cooling performance while reducing energy consumption and protecting compressors.
Choosing a reliable manufacturer is essential for obtaining high-quality refrigeration control components. Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. provides professional refrigeration automatic control solutions designed to meet different application requirements.
For reliable thermal expansion valves and customized refrigeration solutions, please contact us today to discuss your project requirements and receive professional support.
